RTS Clutch & Billet Black Flywheel, For Ford Falcon EB - AU 5.0 V8, 91-02 157T Flywheel, 10-Spline, 1 1/16 in. Diam, 10.5 in. Diameter Disc, Kit
Temporarily Out of Stock

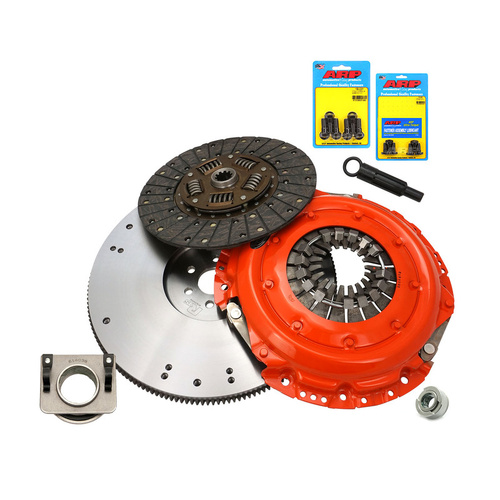

Ford V8 157 Tooth Billet Flywheel & 10.5" Xtreme Clutch Assembly, Release & Pilot Bearings and ARP Bolts
Ford V8 10" Billet Flywheel & Clutch Assembly, Bolts, Release & Pilot Bearings and ARP Bolts Save $$ by purchasing a RTS Clutch package which includes all the items associated with completing the job sucessfully FLYWHEEL RTS Explosion Proof billet steel flywheels are designed from the ground up to deliver high performance results. Starting with CAD engineering and tested to limits far above the SFI-ratings, these flywheels are then constructed from 4140 high-quality materials to ensure reliable results. These flywheels are sure to deliver what they promise:
* CAD engineered
* 4140 Steel and Heat-treated ring gears *
* CNC-machined finish
* Available in multiple configurations
* 2 removable/ lnterchangeable weights 28oz & 50oz.( Early 28oz / Late 50oz)
Note: The black coating is a black chemical conversion coating (not physically coated) and will not affect clutch discs.
Extreme Clutch Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.
This pressure plate bolt pattern uses the 6 x evenly spaced 5/16" bolt holes used in late model 157 tooth Ford Flywheels.
RTS steel flywheels are drilled for this and all other Ford bolt patterns
|Flywheel Step (mm)||Flat|
|Clutch Disc Diameter (mm)||268|
|Clutch Disc Spline Count||10|
|Clutch Disc Spline Diameter (mm)||27|
|Clamping Force % Increase||25%|
|Torque (Nm) Inc FOS||560|
|Torque (ftlbs) Inc FOS||410|
|Spigot Bush/Bearing Included||Yes|
|Aligning Tool Included||Yes|
|Spline Grease Included||Yes|
|Transport Weight (kg)||12|
