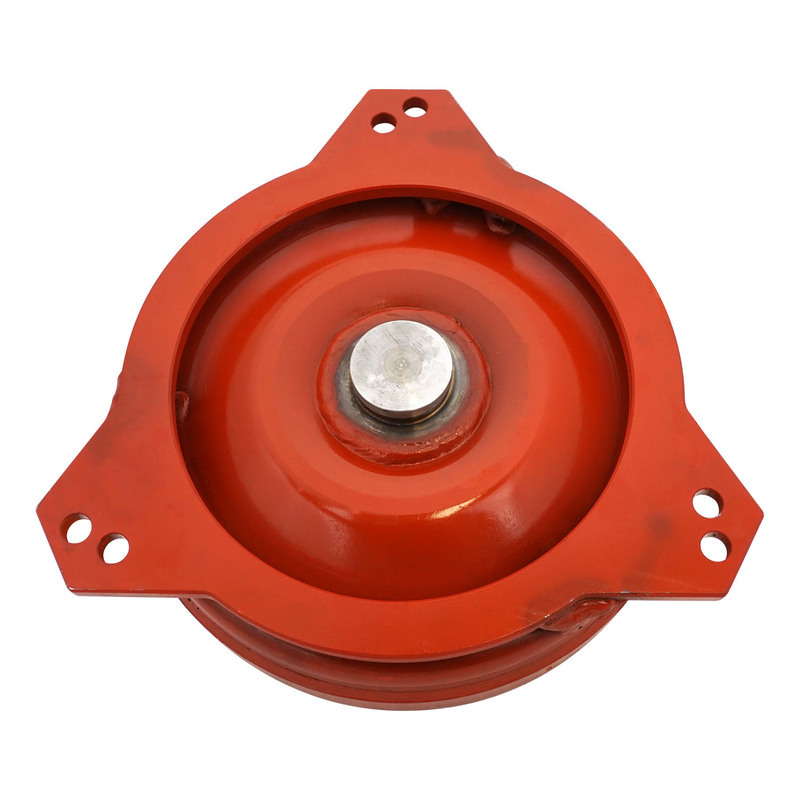

RTS Serious Stall Converters

RTS high stall torque converters are designed for serious-minded performance enthusiasts and offer additional strength and durability. The higher stall speeds of these converters will launch the car in a higher RPM range where more torque is readily available, resulting in quicker acceleration. They’re available for a variety of transmission makes and models. They are also available in a custom build model to suit any performance high horsepower application.

Click here for more details on our custom built torque converters.



Features

  • Built using state-of-the-art tools & equipment
  • Includes NEW components
  • Welded internal hub
  • Welded fins on turbine and impeller
  • Welded pilot
  • Chromoly Flanged hub, acts as a internal Anti Balloon plate
  • All critical surfaces are resurfaced by skilled craftsman
  • Pressure tested to ensure a full and complete weld
  • Electronically balanced for precision accuracy
  • Made in the USA!

Torque Converter Specs

  • Stall: 2500-2800
  • Series: Bandit rate at 650hp
  • Size: 10"
  • Turbine: 30 spline
  • Bolt Pattern: TH350 / TH400 and PowerGlide with Turbo Spline
  • Bolt Circle: Dual 10.750'' / 11.500''
  • Accepts 7/16 Bolts : use RTS-TC716BOLTGM2
  • Pilot Size: 1.703
  • Mount: 3 pad Bolt & Nut
