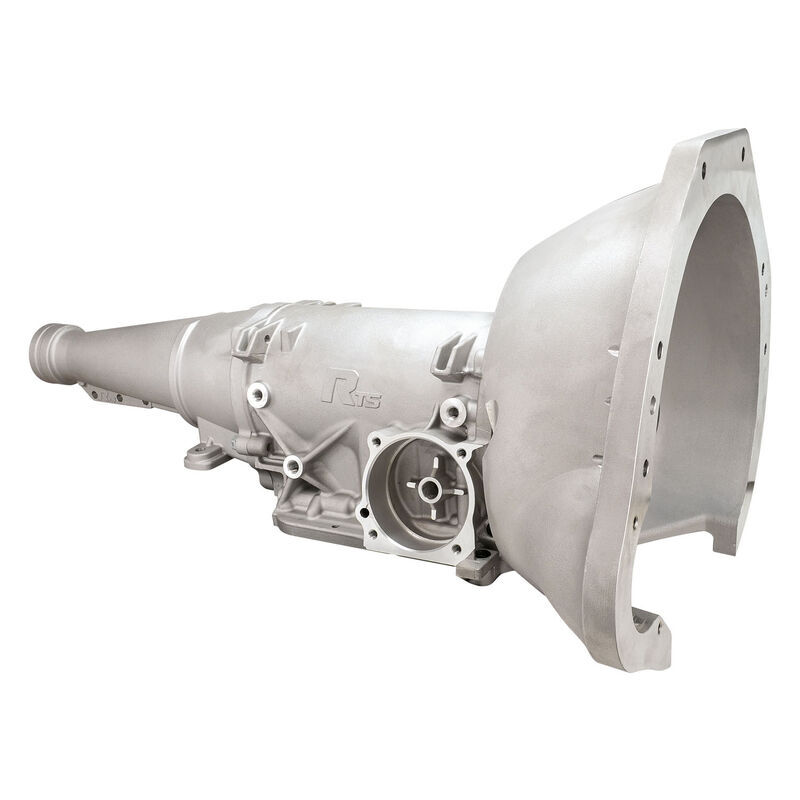

RTS SuperMax Ford C4 Transmission Case Kit

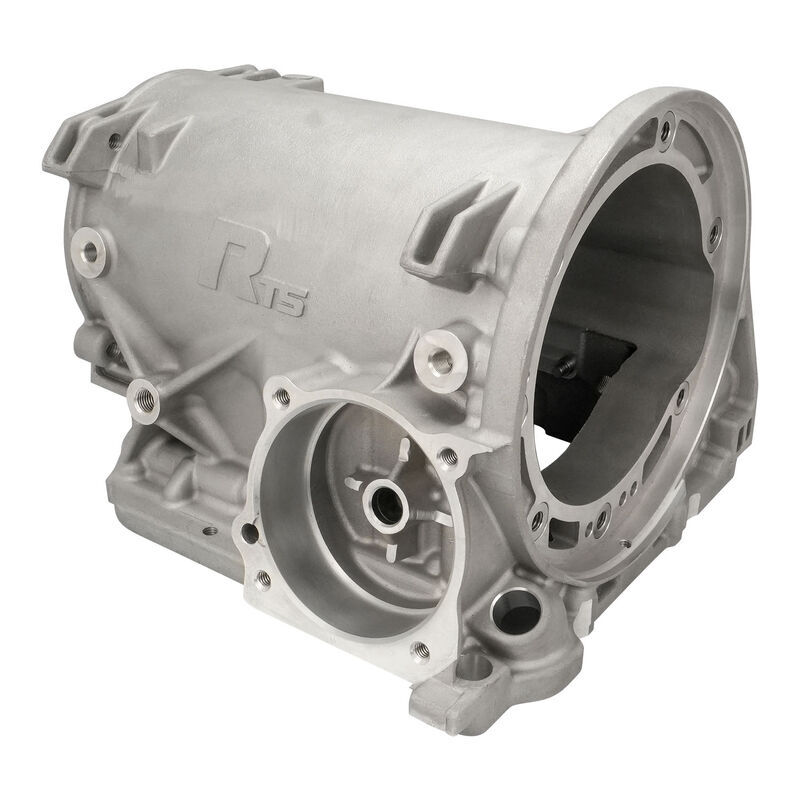

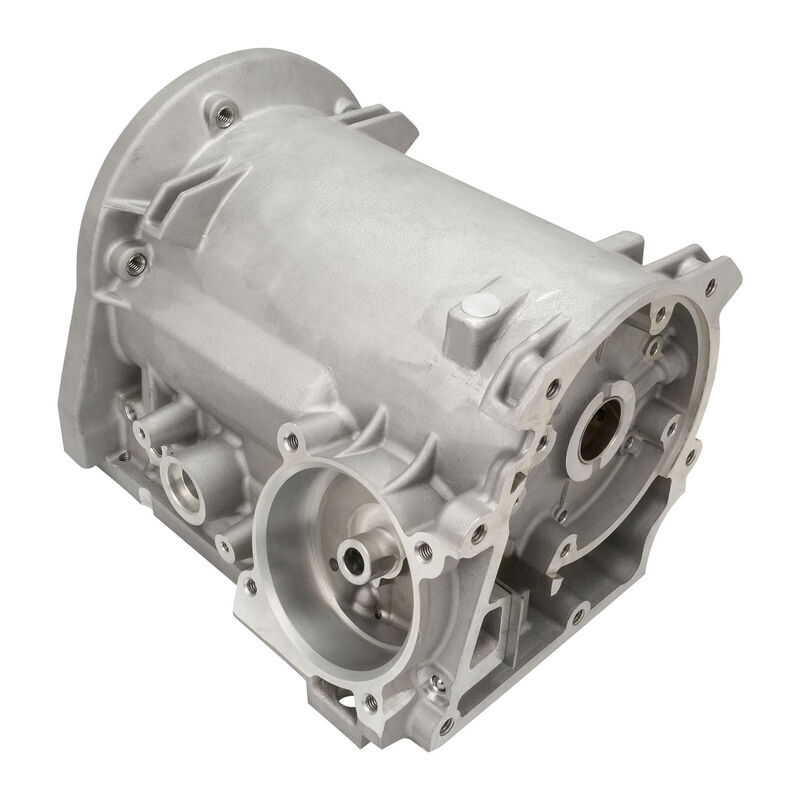

The RTS SuperMax Ford C4 Transmission Case is a completely new aftermarket design, developed by RTS engineers from the ground up as a stronger and more refined replacement for the original Ford C4 case.

Cast from high-strength A356-T6 aluminium, the SuperMax case has been engineered to address a number of known limitations and weak points found in the factory casting. Rather than simply reproducing the OEM design, RTS has added material and reinforcement in critical areas, improved component clearances, upgraded sealing surfaces and refined machining throughout the case to create a better foundation for performance C4 transmission builds.

Critical areas have been strengthened and OEM-style pockets and unnecessary material reliefs have also been removed from key areas to increase rigidity and provide a more substantial casting.

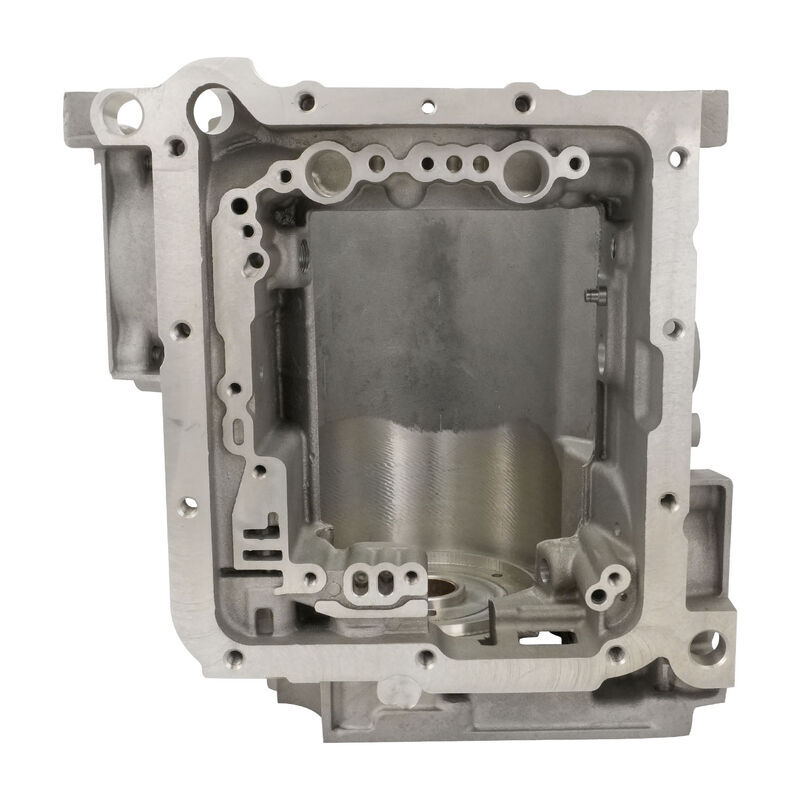

Internally, the valve body area has been revised with additional clearance to accommodate larger aftermarket billet valve bodies. Servo bores, modulator passages and other critical machined features have also been refined for improved fitment and sealing.

Threaded areas have received particular attention, with improved thread tolerances and increased thicknesses throughout the case. The band adjuster also uses the coarse-thread configuration commonly preferred in performance C4 applications.

Designed for serious street, drag and high-performance applications, the RTS SuperMax C4 case provides transmission builders with a stronger, purpose-built platform without relying on an increasingly difficult-to-source factory casting.

Features:

• Completely new aftermarket Ford C4 case design
• High-strength A356-T6 cast aluminium construction
• Reinforced thicker casting with additional material in critical load areas
• Heli-coiled (timeserted) front pump threads
• 1/8" NPSM transmission cooler ports
• 1/2" Course thread band adjusters
• Push-In style modulator valve

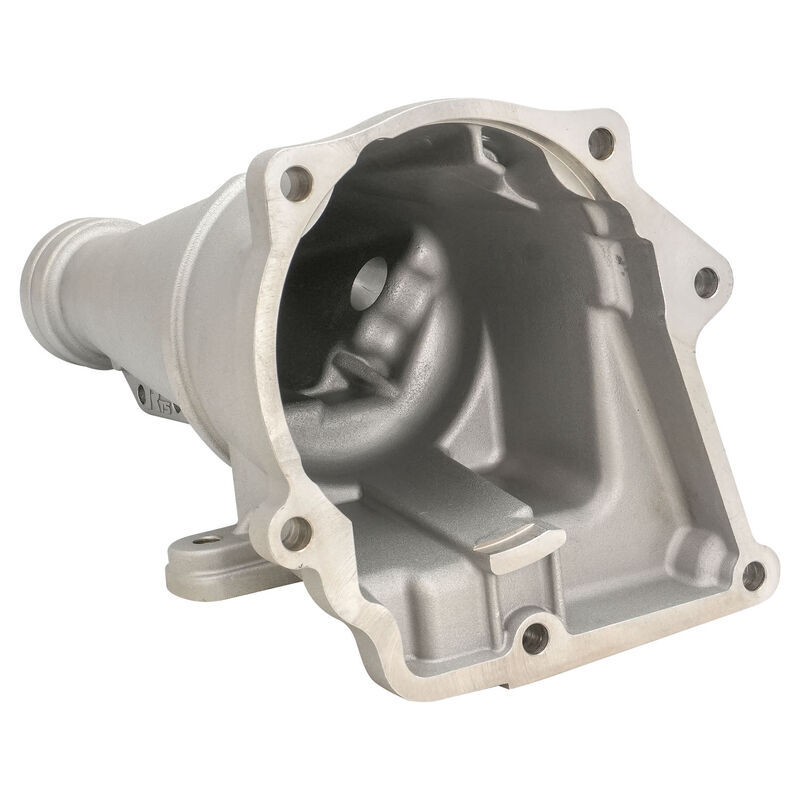

• Revised rear case and tailhousing mounting area for increased rigidity
• OEM material reliefs removed from critical areas to increase strength
• Extended clearance for aftermarket billet valve bodies
• Revised internal breather and drainage passages added

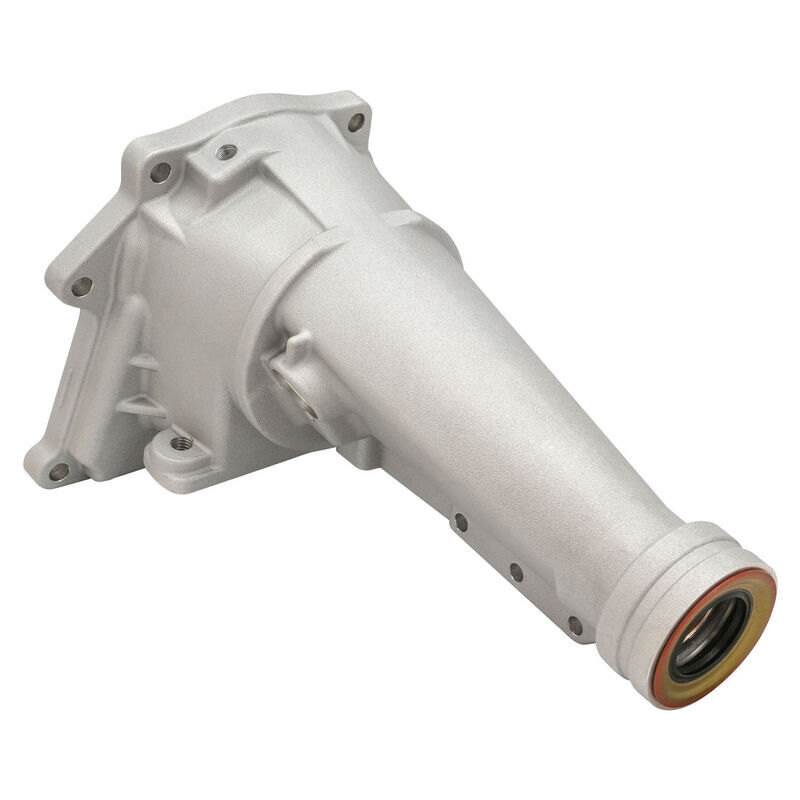

• Rear extension housing bush supplied/installed

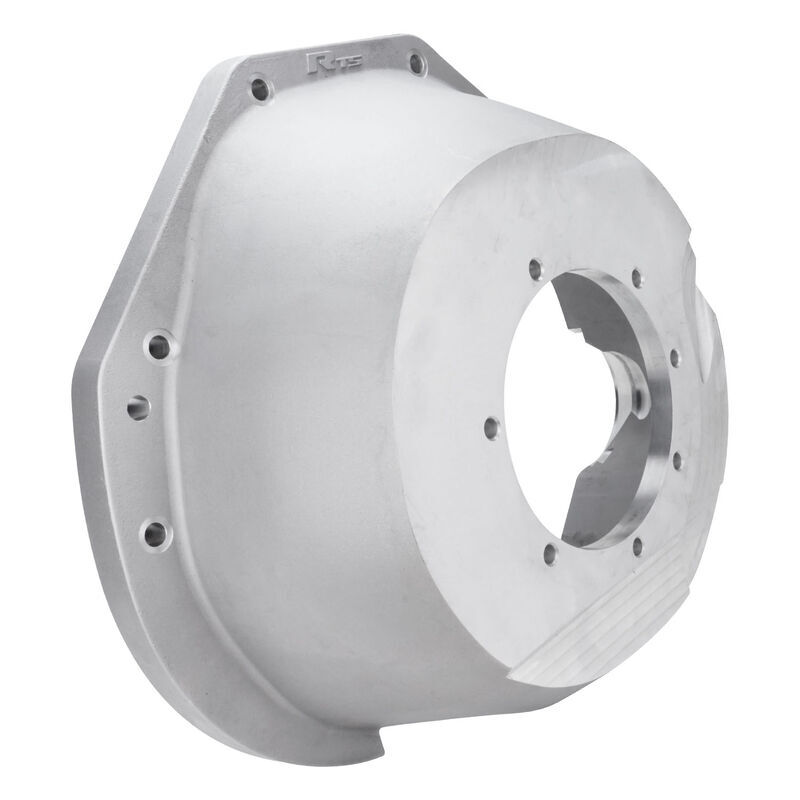

RTS SFI Bellhousing

Using the latest casting technologies, RTS has designed these cast aluminium bellhousings allowing many popular engine/transmission combinations to be easily mated together. They have gone through SFI’s explosion-proof testing procedures and have come out the other side with a SFI 30.1 rating! Manufactured from one-piece A356-T6 cast aluminium, they are roughly 5 times stronger than standard replacement bellhousings and can withstand the harshest tyre shake, while still being able to fit under most floorpans.

• Small Block SB Ford 289, 302, 351 Windsor & Cleveland ( Cleveland needs to use all 157 tooth components )
• SFI 30.1 Certified
• Works with OEM C4 case
• Mounts to front pump on C10 applications
• Must use torque converter with small bolt circle (10.5")
• Works with most 11" and smaller torque converters
• T6 cast aluminium
• Precision machined
• 5x stronger than OEM
• Hardware kit included - Bellhousing to block & Longer pump bolts
• Use 157 tooth flexplate and sandwich plate
