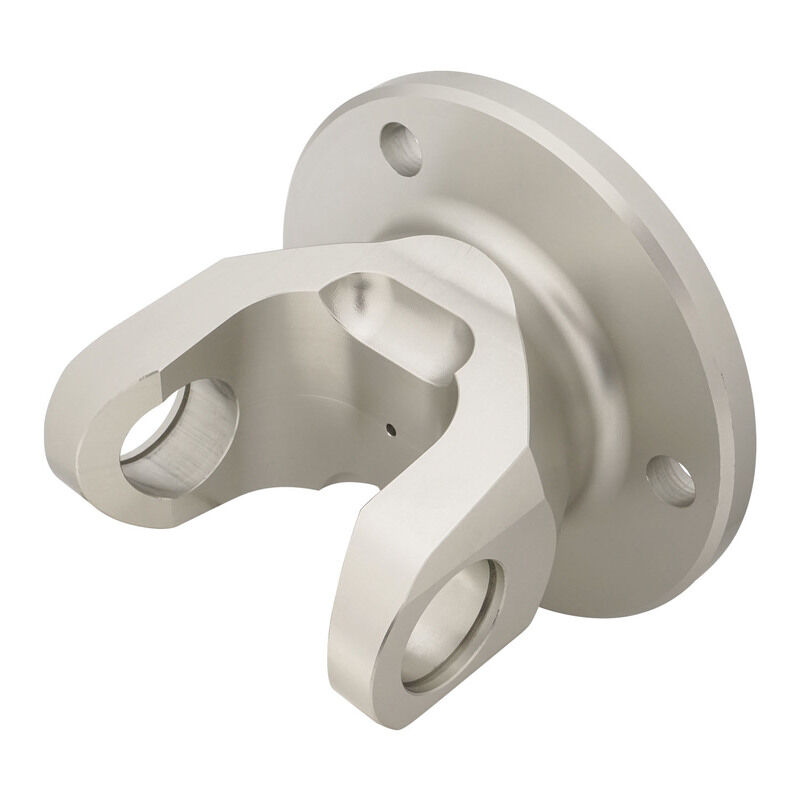

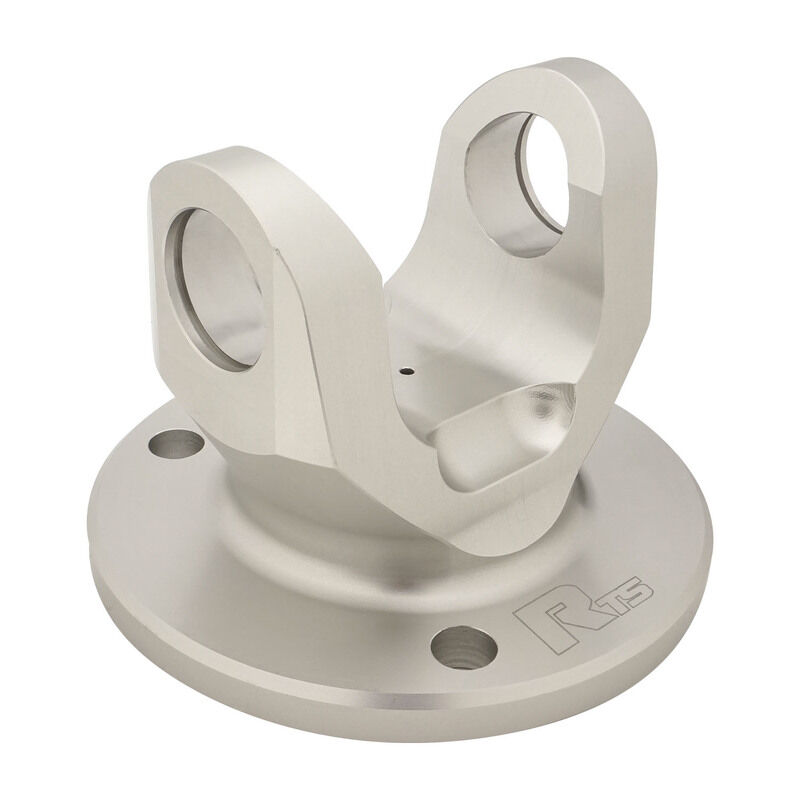

Aluminum Adapter Flange Yokes- Holden Commodore VE-VF, VF LSA

Fits 6L80, 6L90, 8L90, 10L80 units, TR6060, TR3160 manual units.



The ideal upgrade for modified performance vehicles, RTS 3-bolt adapter flange yoke kit makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.



  • Eliminates the troublesome giubo (sometimes misspelled as guibo) and/or CV joint(s)
  • Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
  • Manufactured from 6061-T6 aluminum
  • Precision-machined for excellent fit and balance

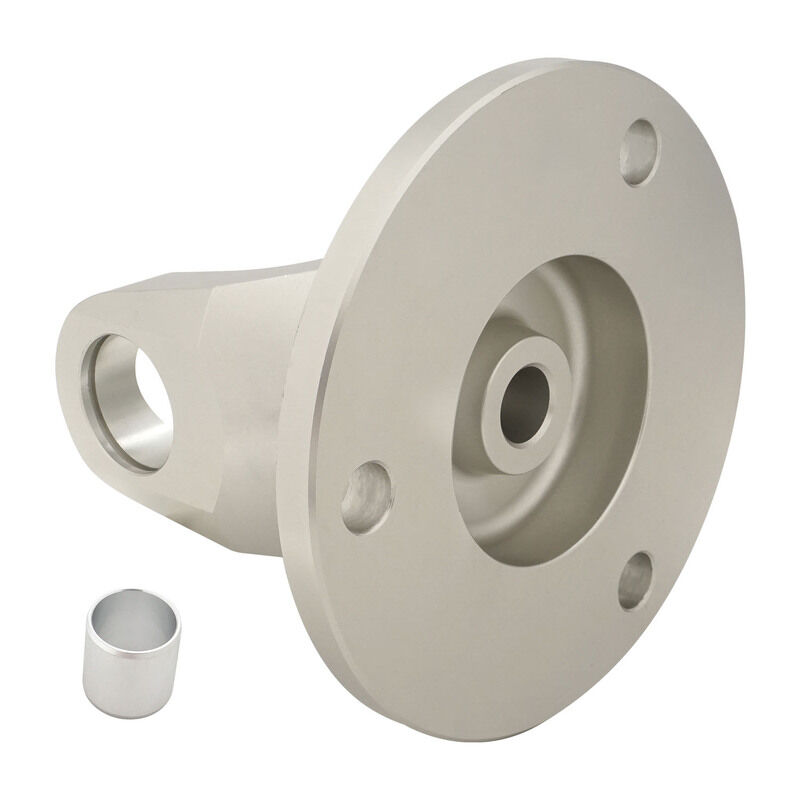

  • Spacer included for 8L90 & 10L80 transmissions; see instructions



  • 3-Bolt Adapter Flange Yoke
  • Spacer 8L90 & 10L80 Only

  • U-Joint Series: 1350
  • Pilot Type: F
  • Material: 6061-T6
  • Bolt Hole Dia.: 0.500"
  • Flange Face to Centerline: 3.000"
  • Weight: 1.980lbs
  • Flange Outer Dia.: 5.450"
  • Pilot Dia.: 0.631"
  • Bolt Count: 3
  • Bolt Circle Dia.: 110mm
