RTS Mounting Ring Kits allows an early GM 245mm lockup core to be adapted for use in 4L60-E applications that originally came with 300mm lockup torque converters. When used along with RTS turbine hub, this kit allows a late 245mm core to be adapted for use in GM 300mm lockup applications.

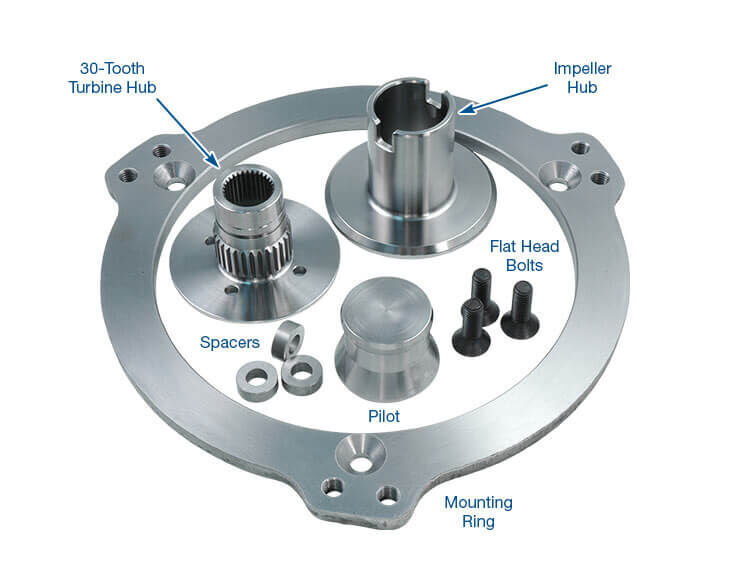

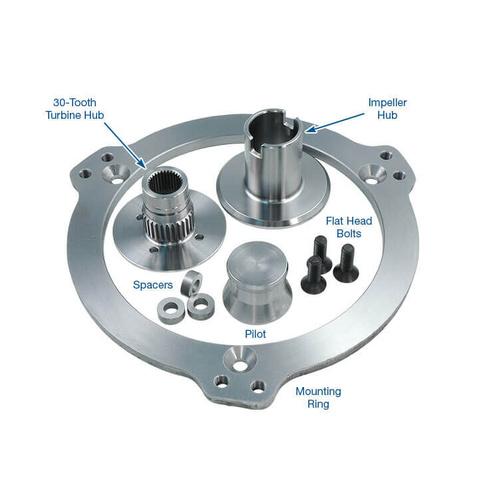

  • Impeller Hub
  • 30-Tooth Turbine Hub
  • Pilot
  • Spacers (3)
  • Mounting Ring
  • Bolts (3)

  • Unit Size: 10"
  • Core: GM 245mm
  • Dampered: Yes
  • Lockup: Single-Plate
  • Transmission Unit: 4L60-E
  • Turbine Hub Input Spline Count: 30
